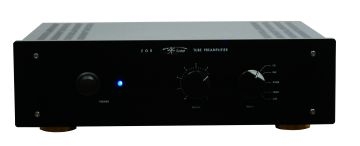

Lector ZOR Röhren-Vorverstärker incl. Fernbedienung

Pure class A vacuum stereo control amplifier, free of solid state components on signal path.
Very low noise power supply. No overall feedback, five line inputs, main output and HTD optional
bypass module to perfectly feet with a multi channel audio system set-up.
The ideal device to archive no compromise high definition stereophony.

I n c l u d e d :
-Remote control handset
-Mains power cord
-Owner’s manual of instructions
-HTD module (optional)
-Solid wood or black plexiglas side panles (optional)

Audio Performance:

Type description unit:   Stereo tube preamplifier, two active tubes, five inputs, two
                                     rec outputs, passive volume output

Tubes:   6922/ECC-88

Frequency response:   20-50.000 Hz +/- 1 db

Distorsion THD:   Less of 0.1 %

Input sensibility and impedance:   200 mV / 20 db gain / 50 kohm input

Max output voltage (gain):   20 Volt @ 250 ohm

Optional:   HTD module (home theater direct)

Sides panels as:   cherry wood or black solid plexiglas

Power supply and consumation:   100V/120V/230V ac 70 V/A

Dimension / weight (net):   400 (L) x 110 (H) x 300 (D) Kg.8
