M8xi - Specifications

Amplifier

• Power Output (20Hz - 20kHz): 550 Watts per channel into 8 Ohms (870W into 4 Ohms); Peak 1.6kW into 2 Ohms
• Maximum output voltage: 67 Volts RMS, 20Hz to 20 kHz; onset of clipping (190 Volts peak-to-peak)
• THD+N: <0.004% typical, 20Hz to 20 kHz (XLR)
• Signal/noise ratio: > 86dB ‚A‘-weighted (XLR)
• Input impedance: 25KΩ (RCA), 50KΩ (XLR)
• Frequency response: +0, –1dB, 10Hz to 100 kHz
• Maximum peak output current: 105 Amps
• Damping factor: 150
• Output devices: 3+3 pairs (bridged arrangement) per channel

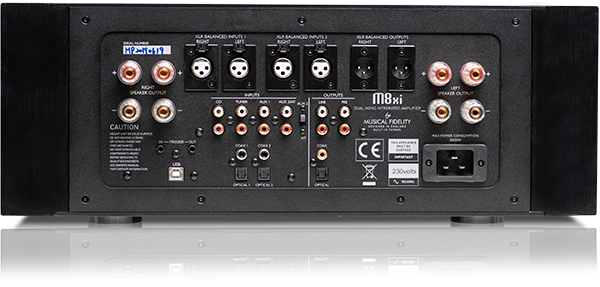

Inputs (analogue)

• 4 pairs line level RCA connectors
• 2 pairs line level XLR (balanced) connectors

Inputs (digital)

• 2x Coax S/PDIF up to 24 bit 192kHz
• 2x Optical S/PDIF up to 24 bit 96kHz
• 1x USB B Asynchronous USB up to 24 bit 192kHz

Outputs (analogue)

• 1 pair line level RCA fixed
• 1 pair pre-out RCA variable
• 1 pair line level XLR variable

Outputs (digital)

• 1x Coax S/PDIF up to 24 bit 192kHz
• 1x Optical S/PDIF up to 24 bit 96kHz

General

• Dimensions (WxHxD): 440 x 162 x 400mm
• Max. Consumption: 2000Watts
