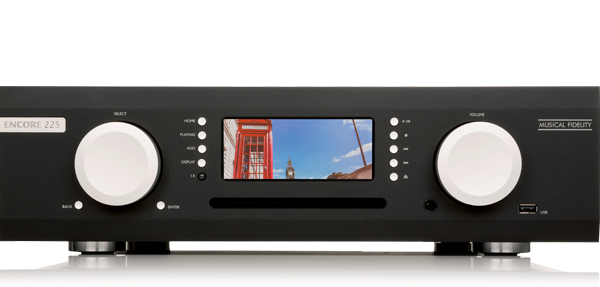

M6 Encore 225 - Specifications

Amplifier

• Power output: 225 Watts per channel into 8 Ohms
• THD (+ noise): <0.007 % typical 20Hz - 20 kHz
• Signal to Noise Ratio: >107dB ‘A’ - weighted
• Frequency Response: +0, –0.1dB, 10Hz to 20 kHz

Inputs

• 3 x Line Level RCA 300mV nominal 2V typical up to 7V rms
• 2 x optical S/PDIF 24 bit inputs up to 192kHz
• 2 x coax S/PDIF 24 bit inputs up to 192kHz
• 1 x USB 3.0 type ‘A’ connector
• 1 xUSB 3.0 type “B” connector (for future expansion)
• 3 x USB2.0 type ‘A’ connector (1 front, 2 rear)
• 10/100/1000 Base-T Ethernet connector

Outputs

• 1x line level FIXED 2.0V @ 0dBFS (300mV rms nominal, >6V rms max)
• 1x line level PREAMP variable outputs (>6V rms max) (Preamp gain, line input to PREAMP outputs is 4.5x (13dB) at maximum volume)
• Headphone output suitable for headphones impedance 8 ohms to ∞. (Headphone output features independent volume setting)
• Speaker outputs 1 pair 4mm banana plugs per channel
• 1x optical S/PDIF 24-bit output up to 192kHz
• 1x coax S/PDIF 24-bit output up to 192kHz
• Internal storage 2.5” 1 TB SATA II hard disk (included) or SSD (future upgradeable)

General

• Dimensions - WxHxD (mm): 440 x 125 x 400
• Weight (packed): 23 kg
