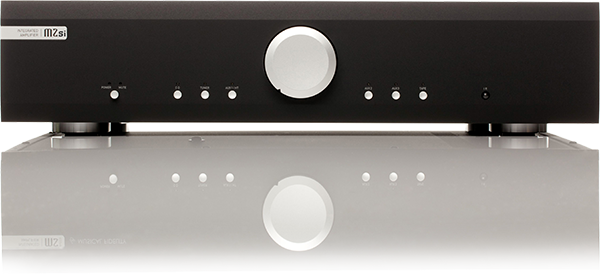

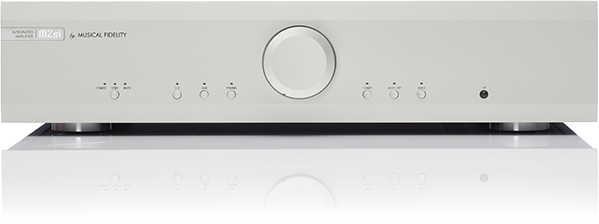

M2si - Specifications

Output

• • Power 72 Watts per channel into 8 Ohms (18dBW)
  • Voltage 22 Volts RMS, 20Hz to 20 kHz; onset of clipping
  • 62 Volts peak to peak
  • Current 25 Amps peak to peak
  • Damping factor 36
  • Output devices 1 pair per channel

Line input

• • THD+N < 0.014 % typical, 20Hz to 20 kHz
  • Signal / noise ratio > 96dB ‘A’-weighted
  • Input impedance 40 k Ohms
  • Frequency response +0, –0.1dB, 10Hz to 20 kHz

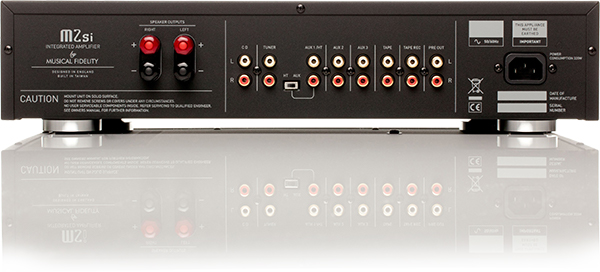

Connections

• • Line level inputs 6 pairs line level RCA connectors
  • Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
  • 1 pair line level RCA connectors, preamp outputs for e.g. bi-amping
  • Speaker outputs 2 pairs 4mm banana plug/binding posts

Power requirement

• • Mains voltages 115/230VAC 50/60Hz (factory pre-set)
  • 100VAC 50/60Hz (alternative)
  • Consumption 320 Watts maximum

Weight

• • Unit only, unboxed 9.2 kg (20¼ lbs)
  • In shipping carton 13 kg (30â…” lbs)

Dimensions

• • Wide 440 mm (17â…“”)
  • High, including feet 100 mm (4”)
  • Deep (front to back) including terminals 400 mm (15¾”)
