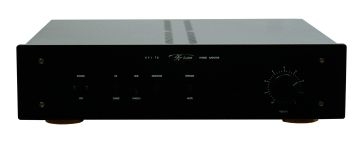

Lector VFI-700mm V-2 Vollverstärker mit Phono MM

Hybrid-Vollverstärker mit Phono MM und seperatem Netzteil, inkl. Fernbedienung

Type of Unit:                                Hybrid Integrated Amp

Power Output:                             20 Wrms Class A
                                                    50 Wrms / 8 ohm
                                                    80 Wrms / 4 ohm

Damping Factor:                          > 100

Frequency Response                 15 - 100 kHz +/- 1.5 dB

Input Sensitivity & Impendance:  Phono: 1 mV / 47 kohm / 100 pF
                                                    Line ( 3 ): 220 mV / 50 kohm

Harmonic Distorsion:                   THD < 0.1 %



S/N Radio:                                    Phono: 60 dB ( A - weighted )
                                                     Line: 95 dB ( A - weighted )

Tube for Preamp Stage:               2 x ECC81/12AT7
                                                     ECC81/12AT7

Line Output:                                  Tape Monitor

Speakers Output:                         One system of speakers

Switchable Main Voltage:             100/110/230/240 VAC - 50/60 Hz - 270 VA

Dimensions (W x D x H):              400 mm x 400 mm x 85 mm

Weight ( Net - Gross ):                 6 kg - 7 kg

External Power Supply:               PSU - 700

Dimension (W x D x H)                200 mm x 300 mm x 85 mm

Weight (Net - Gross):                  7 kg - 8 kg
