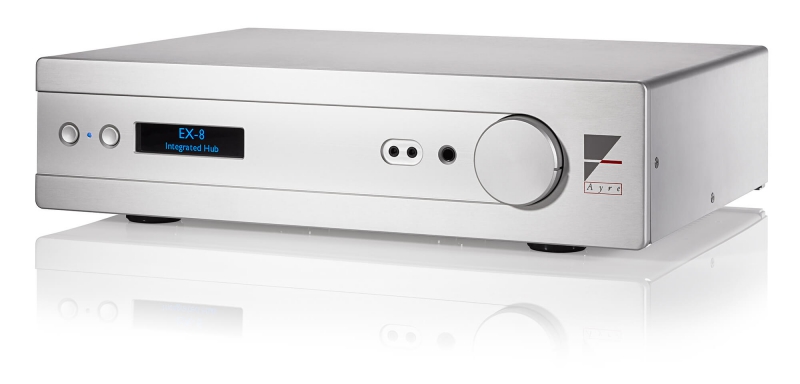

Ayre - EX-8 Analog

Audio Inputs

USB: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
PCM 16, 20, 24 bits
DSD64 and DSD128 (as DoP)

Optical/SPDIF/AESEBU: 44.1, 48, 88.2, 96, 176.4, 192 kHz
PCM 16, 20, 24 bits
DSD64 (as DoP)

Network: 44.1, 48, 88.2, 96, 176.4, 192 kHz
PCM 16, 20, 24 bits
DSD64 (as DoP)

Analog: 1 Balanced XLR, 2 Single-ended RCA

Outputs

Speaker Output: 100 watts per channel continuous into 8 ohms

Line Output: 4.5 Vrms balanced, 2.25 Vrms single-ended

Headphone Output: 4.0 Vrms balanced, 2.0 Vrms single-ended

XLR Input Polarity

Pin 1 = Ground
Pin 2 = Non-inverting (Positive)
Pin 3 = Inverting (Negative)

Power Consumption

60 watts in operating mode

Dimensions

17.25″ W x 13.00″ D x 3.75″ H

(44cm x 33cm x 11cm)

Weight

24 pounds (11 kg)
