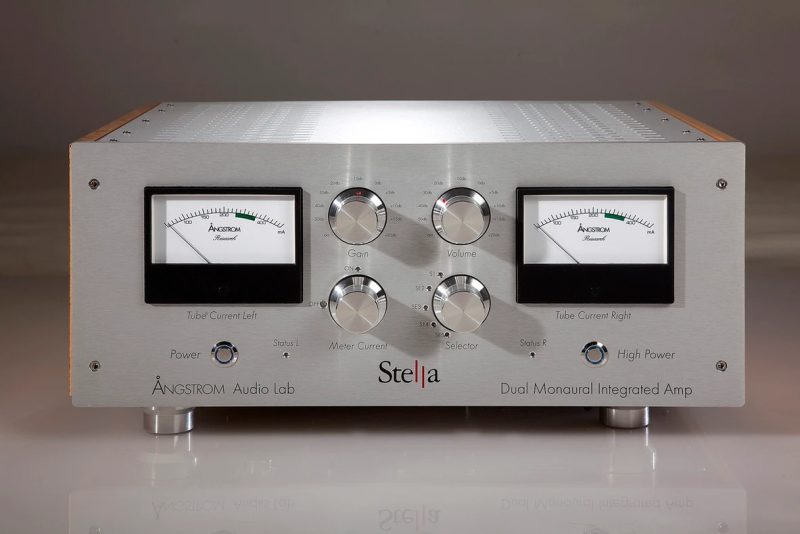

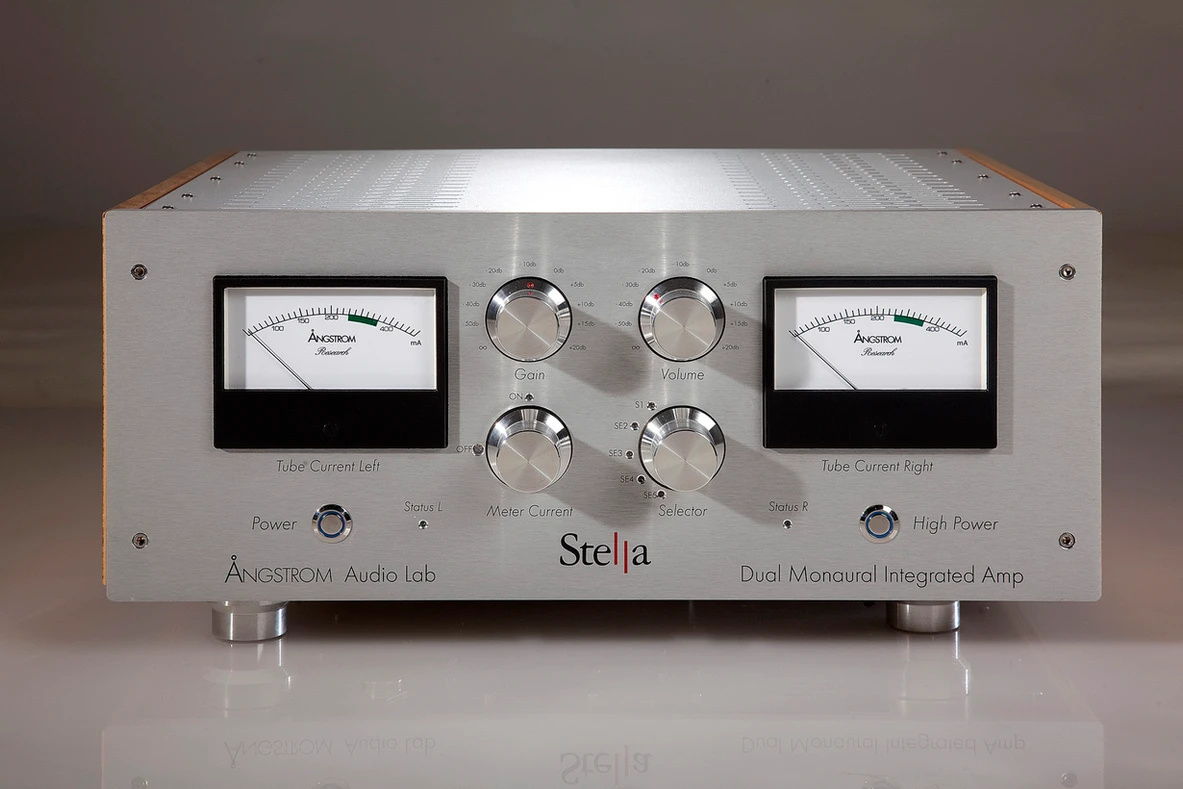

Angstrom - Stella Vollverstärker SIA 100
Art.Nr.: Angstrom-Stella Vollverstärker
Hersteller: Angstrom
- 2x XLR
- 3x RCA
Output Power:
- 2x 100 Watt (8 ohm) in full power mode
- 2x 50 Watt (8 ohm) in half power mode
Circuit Detail:
- Output stage in pure Class A, Push Pull triode operation (both full and half power)
- Two Output Toroidal Transformer per Channel in Circlotron Connection
- Total Power Output Transformers: 370 Watt
- Pure Symmetric Balanced Circuit
- Current Output Driver
- Zero Feedback (we mentioned before in the “double Transformer output” that we had minimal negative feedback…)
- 6 Independent Power Supplies
- 2 Amorphous High Current Chokes (one per channel)
Tubes:
- 6x EL34 Output Tubes per Channel (12 total)
- 4x Ecc82 Input/Driver Stage per Channel (8 total)
Input Impedance:
- Balanced 1M Ohm
- Single Ended 470K Ohm
Hum & Noise:
- less than 2.0 mV rms 88dB
PS Energy Storage:
- 280 Joules
Power Consumption At Max Power:
- 1000 Watt (370 in Idle)
Dimensions:
- W 45.5cm, H 20cm, D 41cm
Weight:
- 41 KG
Hersteller: Angstrom
- 100 Watt/ch in Pure Class A
- Push Pull triode operation
- Two output toroidal transformer per channel in circlotron connection
- Built entirely by hand
- Fully hand-wired point-to-point electronics with Silver/ Copper wire, Teflon/Arlon Insulated MIL 16878-WTYPE E 200° High Temperature
Technical Specifications:
Inputs (configuration can be customized):- 2x XLR
- 3x RCA
Output Power:
- 2x 100 Watt (8 ohm) in full power mode
- 2x 50 Watt (8 ohm) in half power mode
Circuit Detail:
- Output stage in pure Class A, Push Pull triode operation (both full and half power)
- Two Output Toroidal Transformer per Channel in Circlotron Connection
- Total Power Output Transformers: 370 Watt
- Pure Symmetric Balanced Circuit
- Current Output Driver
- Zero Feedback (we mentioned before in the “double Transformer output” that we had minimal negative feedback…)
- 6 Independent Power Supplies
- 2 Amorphous High Current Chokes (one per channel)
Tubes:
- 6x EL34 Output Tubes per Channel (12 total)
- 4x Ecc82 Input/Driver Stage per Channel (8 total)
Input Impedance:
- Balanced 1M Ohm
- Single Ended 470K Ohm
Hum & Noise:
- less than 2.0 mV rms 88dB
PS Energy Storage:
- 280 Joules
Power Consumption At Max Power:
- 1000 Watt (370 in Idle)
Dimensions:
- W 45.5cm, H 20cm, D 41cm
Weight:
- 41 KG
