M8s-500s - Specifications

Performance

• Power output: 500 Watts per channel into 8 Ohms (27 dBW)
• THD(+ noise): <0.007% typical
• Signal to Noise Ratio: >120dB 'A' weighted
• Frequency Response: +0, –1dB, 10Hz to 80kHz

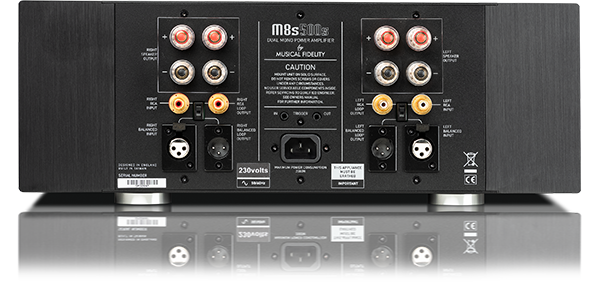

Inputs

• 1x RCA Phono Line Level
• 1x Line level XLR Balanced
• 1x Trigger input 3.5mm (â…›”) mono jack ±4.5 to ±15V DC

Outputs

• 1x RCA Phono Line Level (loop output)
• 1x Line level XLR Balanced (loop output)
• 1x Trigger output 3.5mm (â…›”) mono jack 12V DC

General

• Dimensions - WxHxD (mm): 440 x 160 x 460
• Weight (unpacked / packed): 29 kg / 34.5 kg
