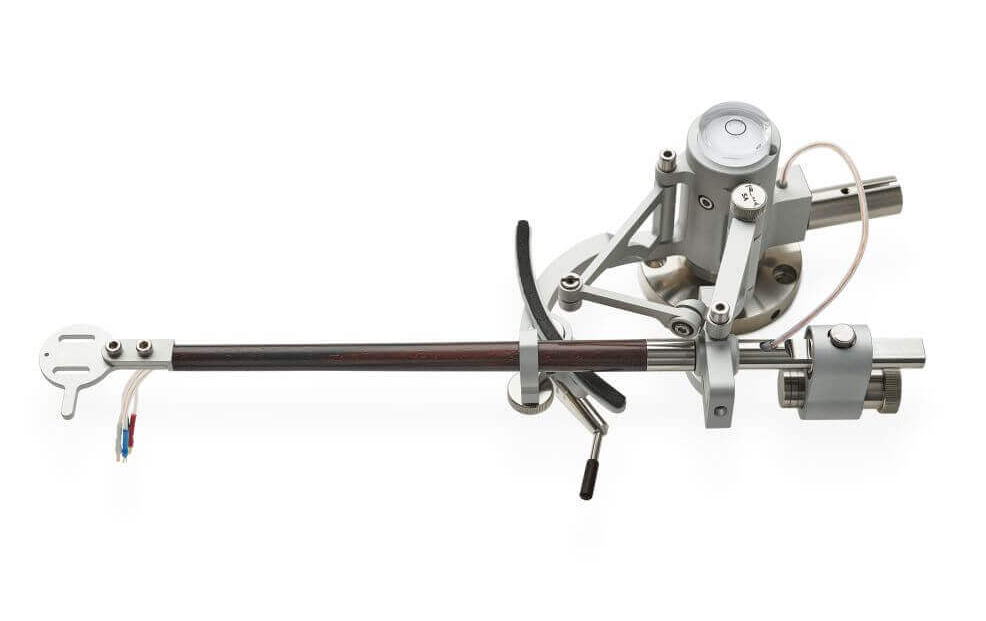

Reed - 5A Tonarm
Art.Nr.: reed-5a
Hersteller: Reed
Hersteller: Reed
Finish auf Anfrage modifizierbar.
Reed 5A tonearm introduced as angling- 90o -tangential-pivot-tonearm, it is based on Double Birch/Thales geometry and will complement our tangential tonearm lineup.
Below is the scheme of Double Birch/Thales geometry. Tonearm geometry is optimized for minimal tracking error.
Armtube suspension system is similar to the one used in Reed 3P tonearm.
Tonearm’s back link uses low-noise ceramic rolling bearings.
Lever uses low-noise ceramic rolling bearing and rests on the sapphire – molybdenum carbide thrust bearing.
Sapphire – molybdenum carbide thrust bearings are also used for tonearm’s front link, vertical and horizontal axes.
Tonearm has VTA and azimuth setup and can be configured with Reed or SME (universal headshell connector) headshells.
To make sure tonearm setup is precisely horizontal, tonearm has integrated level and horizontal plane adjuster.
Comparing to regular pivot tonearms, Reed 5A does not require antiskating and has much less absolute tracking error (max. tracking error is +/- 4 Minute of Angle (MOA) (Fig.2). Pivot tonearms – approx. 1.2 – 2.5 deg. (Fig.3).
Comparing to other tangential tonearms, Reed 5A does not require any additional devices to work (e.g. compressors, electronic controllers), is compact and can be easily mounted on a wide range of turntables.
Reed 5A tonearm introduced as angling- 90o -tangential-pivot-tonearm, it is based on Double Birch/Thales geometry and will complement our tangential tonearm lineup.
Below is the scheme of Double Birch/Thales geometry. Tonearm geometry is optimized for minimal tracking error.
Armtube suspension system is similar to the one used in Reed 3P tonearm.
Tonearm’s back link uses low-noise ceramic rolling bearings.
Lever uses low-noise ceramic rolling bearing and rests on the sapphire – molybdenum carbide thrust bearing.
Sapphire – molybdenum carbide thrust bearings are also used for tonearm’s front link, vertical and horizontal axes.
Tonearm has VTA and azimuth setup and can be configured with Reed or SME (universal headshell connector) headshells.
To make sure tonearm setup is precisely horizontal, tonearm has integrated level and horizontal plane adjuster.
Comparing to regular pivot tonearms, Reed 5A does not require antiskating and has much less absolute tracking error (max. tracking error is +/- 4 Minute of Angle (MOA) (Fig.2). Pivot tonearms – approx. 1.2 – 2.5 deg. (Fig.3).
Comparing to other tangential tonearms, Reed 5A does not require any additional devices to work (e.g. compressors, electronic controllers), is compact and can be easily mounted on a wide range of turntables.
Informationen zum sicheren Umgang mit dem Produkt
PDF Download: Sicherheitsdatenblatt
Hinweis: Zum Öffnen der PDF-Datei benötigen Sie ein geeignetes Programm, wie z. B. den Adobe Acrobat Reader oder eine ähnliche Anwendung. Diese Programme können kostenlos heruntergeladen werden.
Kontaktinformationen des Herstellers für Fragen zur Produktsicherheit oder Compliance
Reed
Mokslininku St. 6A
LT-08412 Vilnius
Litauen
Tel: +370 698 54436
E-Mail: info@reedaudio.com
