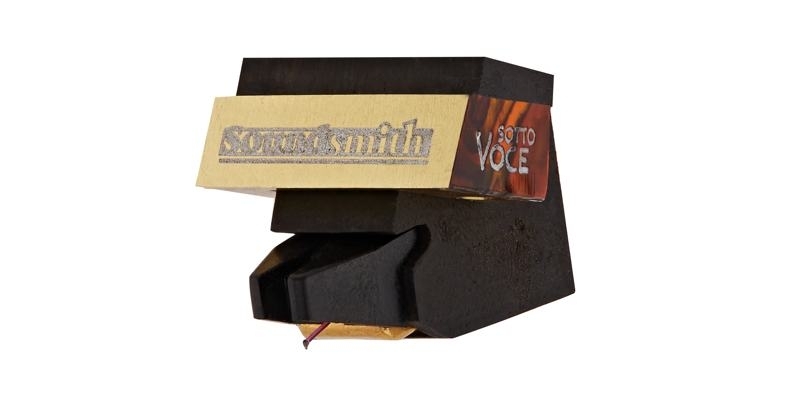

Soundsmith - Sotto Voce Tonabnehmer

• Output: Medium

• Output Voltage: 1.1 mV

• Available As Dual Coil Mono: Yes ($300 additional)

Additional Specifications:

• Type:    • Fixed Coil / Moving Iron

• Mount:    • Standard ½”

• Stylus:    • Contact Line, Nude, 0.10 mm square Selected

• Radius of Curvature:    • Optimized Contour Contact Line

• Cantilever:    • Ruby

• Recommended Tracking Force:    • 1.3 - 1.6 g Standard (Medium Compliance)

                                                                • 1.0 - 1.2 g (Special Order High Compliance)

• Effective Tip Mass:    • 0.30 mg

• Compliance:    • 22 µm/mN (Medium Compliance)

                                  • 28 µm/mN (High Compliance)

• Frequence Response:    • 20 - 20,000 Hz ± 1.0 dB

• Channel Separation @ 1000 Hz:    • > 30 dB

                                                                 • N/A (Mono version)

• Channel Separation @ 50 - 15,000 Hz:    • > 20 dB

                                                                           • N/A (Mono version)

• Channel Difference:    • < 0.5 dB

                                             • < 1.0 dB (Mono version)

• Output Voltage @ 5cm/sec:    • > 1.10 mV (MEDIUM)

• DC Resistance (DCR):    • 110Ω

• Coil Inductance per channel:    • 30 mH

• Suggested Preamp Gain:    • 48 - 54 dB

• Cartridge Weight:    • 6.80 g

• Recommended Load Resistance:    • ≥ 1.5kΩ

• Recommended Load Capacitance:    • n/a
