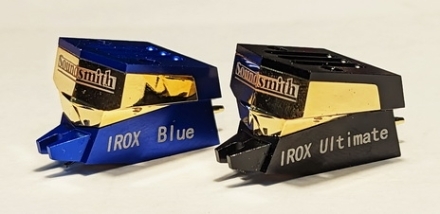

Soundsmith - Irox Tonabnehmer
Art.Nr.: Soundsmith-Irox
Hersteller: Soundsmith
Hersteller: Soundsmith
Our ultra-high performance "Unbreakable" cartridge - for those who demand excellent analog reproduction but desire a cartridge that will withstand rough handling without failure.
Ultimate: Made in the USA. Rebuild Price? ~ $360 ~ Less Than 20% of MSRP, as always ! - The Irox Ultimate features a 2 year warranty to the original owner.
Blue: Made in the USA. Rebuild Price? ~ $180 ~ Less Than 20% of MSRP, as always ! - The Irox Blue features a 2 year warranty to the original owner.
Additional Specifications (Blue):
Additional Specifications (Ultimate):
Ultimate: Made in the USA. Rebuild Price? ~ $360 ~ Less Than 20% of MSRP, as always ! - The Irox Ultimate features a 2 year warranty to the original owner.
Blue: Made in the USA. Rebuild Price? ~ $180 ~ Less Than 20% of MSRP, as always ! - The Irox Blue features a 2 year warranty to the original owner.
Additional Specifications (Blue):
- Output: High
- Available As Dual Coil Mono: Yes ($300 additional)
- Type: • Fixed Coil / Moving Iron
- Mount: • Standard ½”
- Stylus: • Elliptical Titanium Bonded, 0.20 mm round
- Radius of Curvature: • 6 x 17 µm
- Cantilever: • Aluminum Alloy
- Recommended Tracking Force: • 2.0 - 2.5 g
- Effective Tip Mass: • 0.55 mg
- Compliance: • 10 µm/mN
- Frequence Response: • 20 - 20,000 Hz ± 2.5 dB
- Channel Separation @ 1000 Hz: • > 26 dB
- Channel Separation @ 50 - 15,000 Hz: • > 20 dB
- Channel Difference: • < 1.6 dB
- Output Voltage @ 5cm/sec: • > 2.12 mV (HIGH)
- DC Resistance (DCR): • 680Ω
- Coil Inductance per channel: • 190 mH
- Suggested Preamp Gain: • 38 - 44 dB
- Cartridge Weight: • 10.25 g
- Recommended Load Resistance: • ≥ 47kΩ
- Recommended Load Capacitance: • n/a
Additional Specifications (Ultimate):
- Output: High
- Output Voltage:>2.12 mV
- Available As Dual Coil Mono: Yes ($300 additional)
- Type: • Fixed Coil / Moving Iron
- Mount: • Standard ½”
- Stylus: • Elliptical Nude, 0.12 mm square
- Radius of Curvature: • 6 x 17 µm
- Cantilever: • Aluminum Alloy
- Recommended Tracking Force: • 2.0 - 2.5 g
- Effective Tip Mass: • 0.55 mg
- Compliance: • 10 µm/mN
- Frequence Response: • 20 - 20,000 Hz ± 2.5 dB
- Channel Separation @ 1000 Hz: • > 26 dB
- Channel Separation @ 50 - 15,000 Hz: • > 20 dB
- Channel Difference: • < 1.6 dB
- Output Voltage @ 5cm/sec: • > 2.12 mV (HIGH)
- DC Resistance (DCR): • 680Ω
- Coil Inductance per channel: • 190 mH
- Suggested Preamp Gain: • 38 - 44 dB
- Cartridge Weight: • 10.25 g
- Recommended Load Resistance: • ≥ 47kΩ
- Recommended Load Capacitance: • n/a
