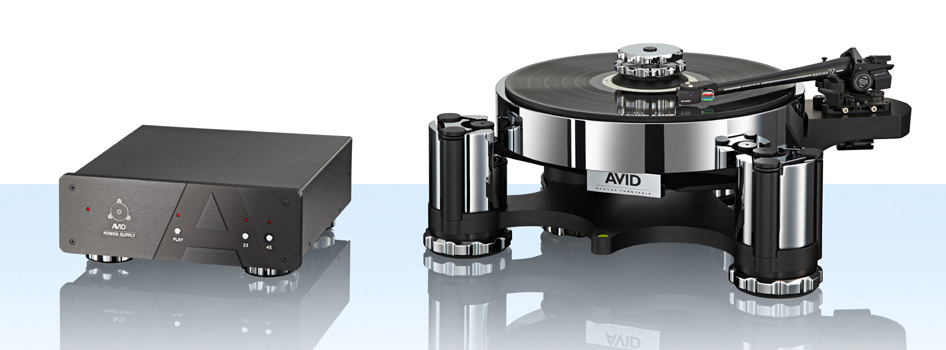

Avid Hifi - Acutus Chrom

Drive

: Twin Belt drive

Speeds

: 33.3 and 45.0 RPM

Platter mass

: 10.0 Kg

Bearing

: Inverted stainless steel

Thrust point

: Tungsten carbide/Sapphire

Suspension

: 3 point, springs in vertical, O-rings in lateral frequency

: vertical 2.5 Hz (variable), lateral 4.5 Hz

Tonearms

: Std. cut for SME (adapters to order)

Motor

: Hand built 24v 140mNm ac synchronous

Power supply

: DSP Vari-SPeed control unit

Voltage input

: 100-240vac 50/60Hz 20 watts max. (depending on region)

Dimensions

: Turntable (overall) 460 x 400 x 210mm (WxDxH)

Dimensions

: Turntable (footprint) 410 x 360mm (WxD)

: P.S.U. 250 x 215 x 95mm (WxDxH)

Net weight

: 19.0Kg (42lb) turntable only

: 3.5Kg (8lb) psu only

Packaging

: 550 x 500 x 570mm (WxDxH)

Shipping weight

: 28.5Kg (63lb)
