Graham Audio - LS 6f Ebony

5.300 €
inkl. 19 % MwSt. zzgl. Versandkosten
(Preis gilt für Versand nach Deutschland)
Lieferzeit: 5-7 Tage
Menge:

Art.Nr.: GRA-21112224-HAM
Hersteller: Graham Audio

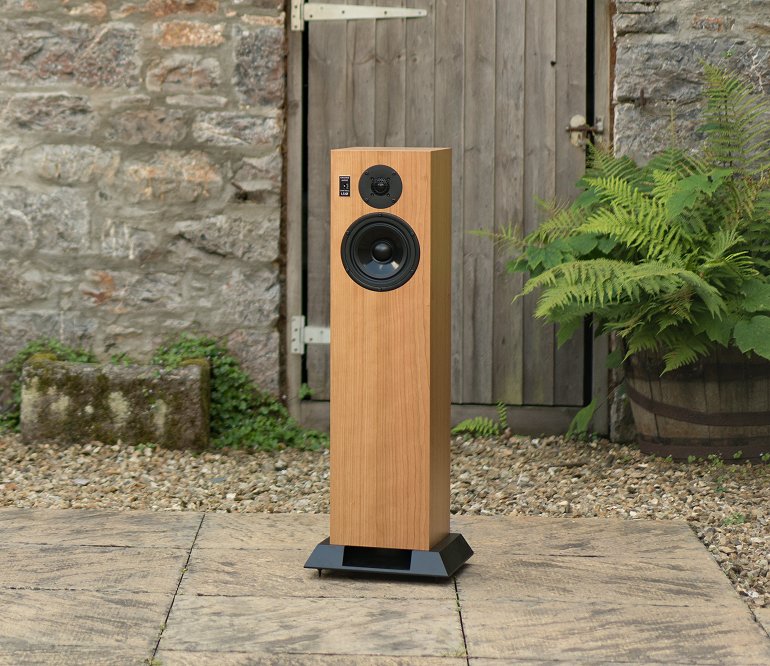

The Chartwell LS6/f

Building on the success of our popular LS6 monitor, the LS6/f is a floor-standing loudspeaker system that combines a modern aesthetic with the open, uncoloured sound you'd expect from a Graham Audio system.

The integrated plinth provides a flow-optimised path for the airflow from the port, reducing distortion at high outputs.

The LS6/f uses the same custom drive units as the stand-mount LS6 and has an optimised crossover network using premium quality components to integrate the acoustic output from both drive units and equalise the overall response for optimum performance in free space. A switch on the front panel adds 1 or 2dB to the tweeter level, which might be advantageous in certain acoustic environments.



In common with all our loudspeakers, the cabinet uses the classic BBC "thinwall" construction, where the panels are mass-loaded to ensure that resonances are moved away from the critical mid-range region, and a layer of Rockwool is held in place by fabric to provide air damping. Hand-matched veneers are applied and finished to a very high standard. The grille is carefully designed to minimise diffraction effects and is held in place by concealed rare-earth magnets.

Specifications

System2 Way, reflex loading
EnclosureThin wall damped construction
FinishReal wood veneer
Dimensions (w/h/d)96cm by 32cm by 32cm (including plinth)
Weight21kg
Frequency response40Hz to 20kHz, ±2dB
Nominal impedance8Ω
Sensitivity87dB SPL (2.83V, 1m)
Maximum outputOver 100dB for a pair at 2m
Bass/midrange165mm Polypropylene
Tweeter19mm Dome tweeter
Recommended amplifier power50 to 150 watts unclipped programme

Bilder dienen nur zur veranschaulichung, das Endprodukt kann vom Bild abweichen
