GoldenEar - SuperSat 50 & 50C

Option 1: SuperSat 50
Option 2: SuperSat 50C

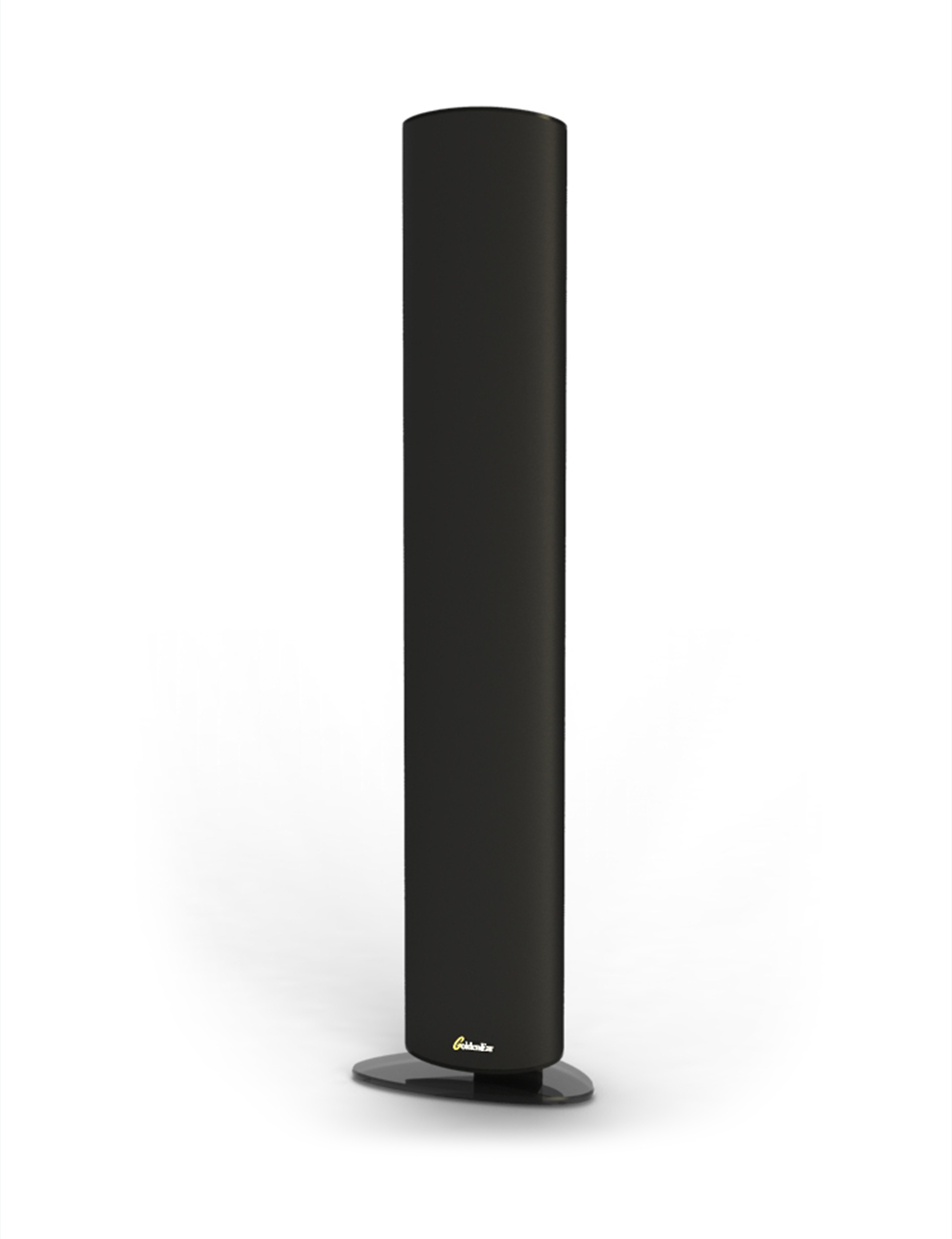

The SuperSat 50 is a slim, 27” long, 2.5”-deep speaker which is available in both a vertical version (on-wall or on optional Table/Shelf or Floor stand) as well as a horizontal, center-channel-optimized version, the SuperSat 50C. Its powerful and dynamic output capabilities make it the ideal center channel for a Triton based theater system, as well as a perfect choice to go alongside a wall- or shelf-mounted flat screen. Of course, the 2.5” depth makes it a perfect on-wall match for the new generation of super thin flat screens.

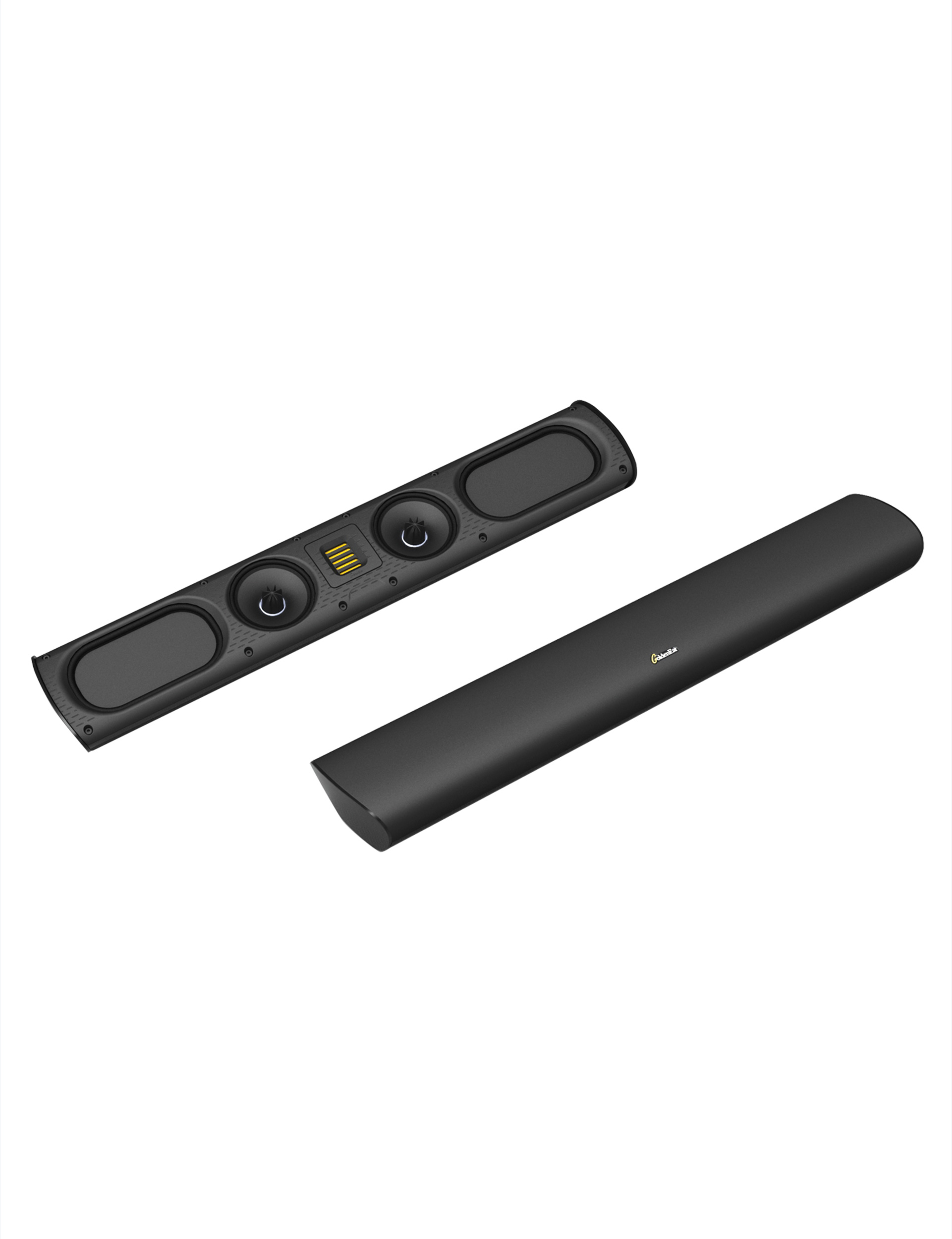

Its cabinet is constructed from piano-gloss-black-finished aerospace-grade aluminum and contains two GoldenEar 4.5” cast basket bass/midrange drivers with Multi-Vaned Phase Plug (MVPP) configured in a D’Appolito array, surrounding the High-Velocity Folded Ribbon tweeter. Two 4”x 7” quadratic planar low-frequency radiators complete the driver complement. Wall mounting is easily accomplished using the threaded inserts or keyhole mounts on the rear, or table top using the optional smoked-glass Table/Shelf Stand 50, or even floor standing using the optional SuperStand Floor Stand – note total height of speaker and floor stand is 48″. The horizontal SuperSat 50C center-channel version includes adjustable leveling feet allowing for multiple angles when shelf/table top mounting.

Specifications:

• Driver Complement:
  • One High-Velocity Folded Ribbon AMT Tweeter
  • Two 4.5" High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Drivers
  • Two 4" x 7" Quadratic Planar Low-Frequency Radiators
• Passive Radiator Surface Area: 17.93in2 (110.6cm2)
• Efficiency: 91 dB 1W/1M @ 4Ω (2.83V/1M)
• Frequency Response: 86Hz–25kHz typical (-6dB on axis @ 125Hz, anechoic bass response)
• Nominal Impedance: 4Ω
• Recommended Amplification: 20 - 200Wpc
• Dimensions: 26.8" (68cm) H/W x 4.75" (12.1cm) W/H x 2.6" (6.4 cm) D
• Weight: 7lbs (3.2kg); Shipping: 8lbs (3.6kg)
