V90-HPA - Specifications

Performance

• Power: 0.25wpc into 32Ohms
• Ouput Impedance: 50Ohms (Suitable for 10-600Ohm headphones)
• THD(+ noise): <0.005% typical (20Hz to 20kHz)
• Signal to Noise Ratio: >109dB 'A'-weighted
• Frequency Response: +0, –1dB, 20Hz to 80 kHz

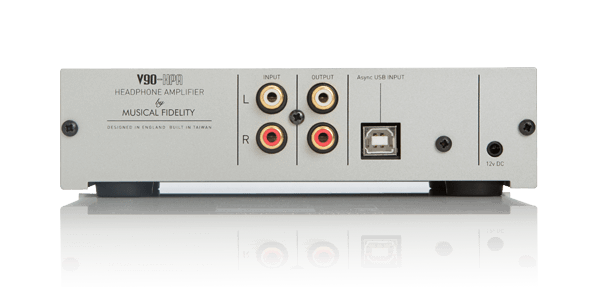

Inputs

• 1x RCA / Phono Line Level
• 1x USB Type 'B' Asynchronus up to 24bit / 96kHz sample rate
• 1.3mm Power Socket

Outputs

• 1x RCA / Phono Line Level (switch selected, fixed 0dB)
• 1x Stereo Headphone Jack - 6.35mm / 1/4"
• 1x Stereo Headphone Jack - 3.5mm / 1/8"

General

• Dimensions - WxHxD (mm): 170 x 47 x 117 inc. terminals / switches
• Weight (unpacked / packed): 600g / 1.1 kg

Supplied Accessories

• 1x 12v 500mA DC power supply
• Instruction Manual
•
