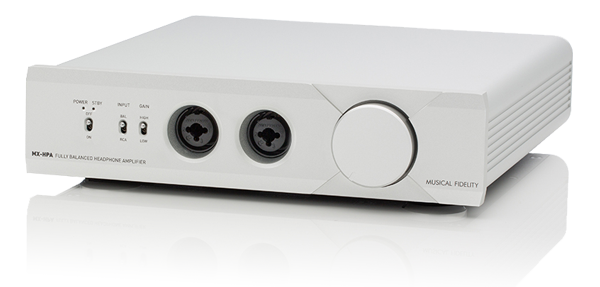

MX-HPA - Specifications

Output

• Power 1.8 Watts per channel into 8 Ohms (27dBW)
• Maximum output voltage 19 Volts RMS, 20Hz to 20 kHz
• Onset of clipping (54 Volts peak-to-peak) balanced

Line input

• THD+N >0.005% typical, 20Hz to 20 kHz
• Signal / noise ratio >120dB ‘A’-weighted
• Input impedance 50k Ohms
• Frequency response +0, –0.1dB, 10Hz to 20 kHz
• Gain, LO position (volume max) 18db (8x)
• Gain, HI position (volume max) 24dB (15x)

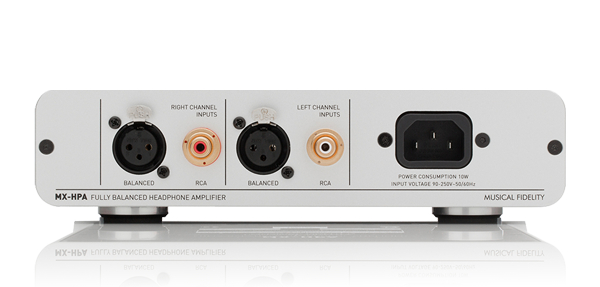

Connections

• Line level inputs
• 1 pair line level XLR (balanced) connectors
• 1 pairs line level RCA connectors

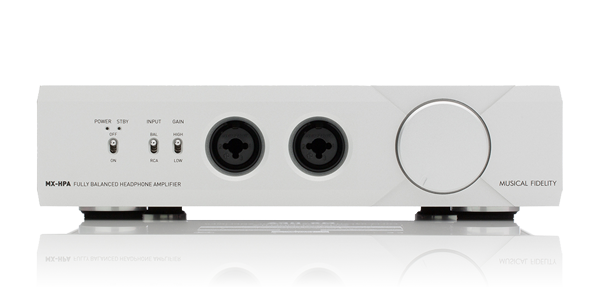

• Headphone outputs
• 1 pair 3-pin XLR/¼” stereo Jack combined sockets

Power requirement

• Mains voltages 90-250VAC 50-60Hz universal worldwide supply
• Consumption >0.25 Watts standby (Orange LED lit)
• 15 Watts maximum (Blue LED lit, full power output)

General

• Dimensions - WxHxD (mm): 220 (82/3”) x 53 (2”) x 240 mm (9½”)
• Weight (unpacked / packed): 2.2 kg (5 lbs) / 3.7 kg (8¼ lbs)
