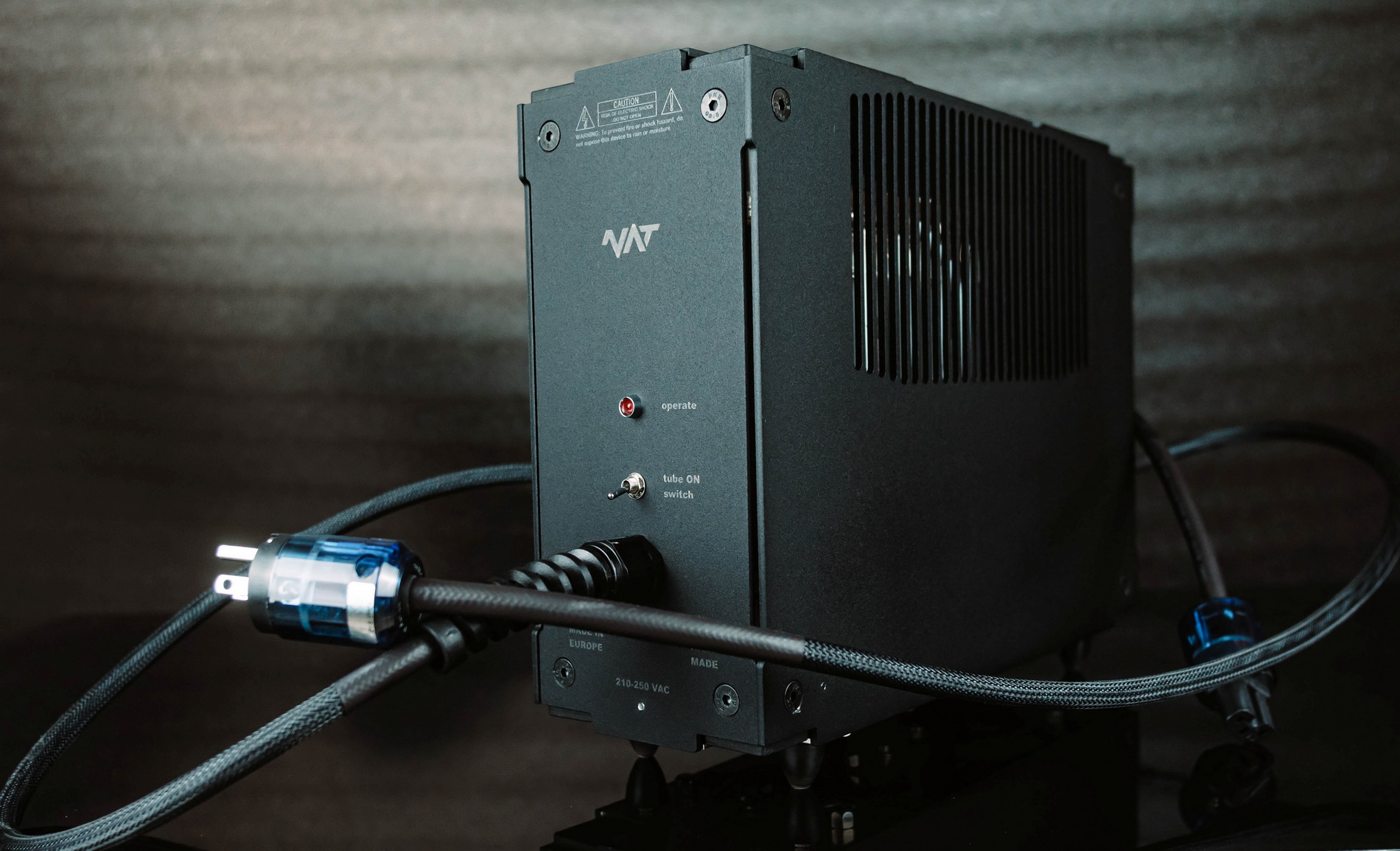

NAT Audio - Vacuum Cord New Reference AC 2,40m

Vacuum Cord New reduce power line and different (other) component generated noise at the same time.

Construction is based on active and passive galvanic (non magnetic but electrostatic) type of filtration with low capacitance as main parameter.

Vacuum Cord New is not only a passive but the active coupler as well as "storage" over 10J of energy - to be able to add extra power to supply connected device during higher current demand! Vacuum Cord New use special tube of tube that has almost ZERO vacuum capacitance! There is no any electromagnetic radiation as transformer (standard) type of conditioner! First of two possible mode is avilable immediately after plug in the power cord - stand-by operation.

Most interesting way of filtration is "vacuum effect" type.

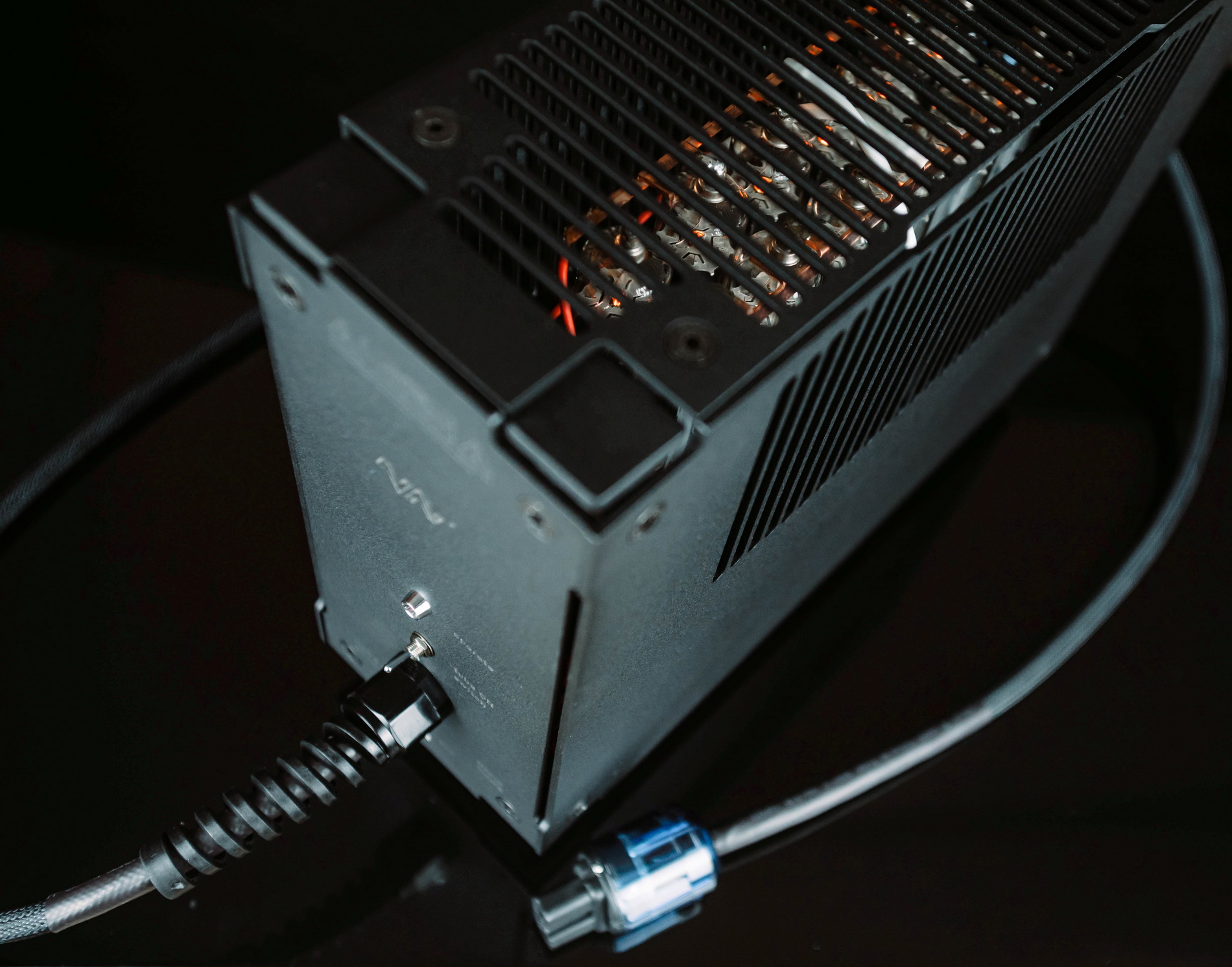

Inside the tube there is vacuum that in conjunction with the rest of filtration circuit act as contactless power filter - means no any standard - solid contact! Tubes in Vacuum Cord New are by N.O.S. (new old stock) grade and have high reliability. Industrial type EY500A is used as high voltage tube with approx. 1A of peak current capability per each tube. There is no less then 12 tubes inside a chassis of Vacuum Cord New! Power tube EY500A is very robust also in voltage domain - it is constructed for few kV of normal operating voltage.

Special designed "heavy weight" chassis of Vacuum Cord New additionally improve outside (from the environment) RF pollution to the inside unit's circuit! For devices up to 400W NAT Vacuum Cord New is unique solution! Soft start additionally improve reliability of entire unit by avoiding voltage stress during turn-on procedure.

After warm-up period Vacuum Cord New automatically "jump" from standby to active - vacuum mode without power supply interruption (in opposite direction as well). There is no need for any tube adjustment from time to time. High quality of electronic material is used in Vacuum Cord New such as - N.O.S.tubes, in-oil military grade capacitors, 1% Vishay resistors,electrolytic capacitors for 105C of working temperature, audiophile grade both input and output power connectors ...

Device works properly at AC line voltage from 200 - 260 VAC, 50-60Hz.

RECOMMENDED FOR: Phono stage, line stage, D/A converter, CD player, turntable, even small integrated (power) amplifiers and other type of units with max. power consumption up to 400W

NON RECOMMENDED: High power amplifier and other units with power consumption over 400W (over 400W it is recomended NAT Tera cord or NAT Black Reference cord).

Design features:

• vacuum effect conditioner - non magnetic but electrostatic galvanic isolated type

• zero feedback type of operation (without any additional tube adjustment)

• ultra low serial capacitance power transfer

• twelve (12) N.O.S. tubes EY500A with long life operation point and high voltage/current capability

• audiophile quality input and output connectors (Oyaide genuine type)

• amorphous material as additional layer is used for the shield of exit part of cable

• standby function with soft start operation

• hand-assembled modulated chassis

• high thickness (3mm) of all units sides to prevent RF pollution from the environment

• extensively used computer numeric control machines (CNC)

Technical Specifications:

• Type: Vacuum effect AC Cord-Conditioner (non magnetic but elestrostatic isolated type)

• Power Output: 400 VA const. ; 600 VA peak @ 200 VAC - 260 VAC without any additional adjustment

• Type Complement: 12 x EY500A N.O.S. (New Old Stock)

• Power Requirement: 200-250V, 50/60Hz 110 VA

• Dimensions Chassis: 5" (125 mm) wide x 15" (380 mm) deep x 12" (300 mm) high; Total lenght with cable 10' (3m)

• NET Weight: approx. 32 lbs (14.5 kg) unpacked

• TOTAL Weight: approx. 46 lbs (21 kg) packed flight case box
