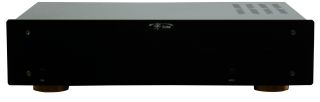

Lector Digitube D/A-Wandler

Röhren-DAC mit USB

Type of Unit:                     Digital to Analog converter with usb input

Output impedance:           250 ohm

Jitter interface:                 20 ps

Frequency Response:     15 - 96 kHz   +/- 1 dB @ hi-res input 192 Khz

Input  digital Impedance:   75 ohm spdif / 110 ohm aes-3

Harmonic Distortion:         THD < 0.1 %

S/N Ratio:                         100 dB ( A-weighted )

Tube output:                     ECC-81/12AT7 x 4




AC Main Voltages:            100/110/230/240 VAC - 50/60 Hz - 100 VA

Dimensions ( W x D x H ): 430 mm x 300 mm x 55 mm

Weight ( Net - Gross ):      8 kg - 10 kg
