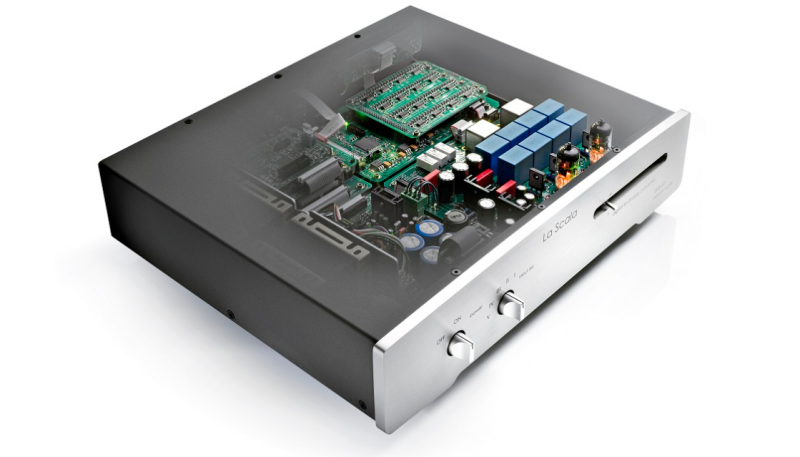

Aqua - La Scala MKII Optologic DAC

FEATURES
the new Optologic Conversion System• High performance proprietary FPGA-based digital decoding without digital filter

• Galvanic and magnetic isolations between the FPGA and R2R ladder converter

• Discrete R2R ladder DACs with low noise precision resistors

• Jitter free digital interface AQlink (I2S protocol), uncompromising digital connection to La Diva cd transport

• Zero S/PDIF Jitter design, digital receiver stage PLL (phase locked loop) technology

• High-performance AQ Discrete Regulator (MOSFET, J-FET, BJT) for analog and digital DAC’s power supply

• Valve-Mosfet direct coupling analog stage in pure class-A without negative feedback

• MOSFET Virtual battery circuit for analog anode supply

• Soft-start power up for extended tube life

• etherCON RJ45 (AQlink) input connection, employs CAT6 cable can connect both RJ45 and professional etherCON RJ45

• 2 separate low noise power transformers, one for the analog and one for the digital section

• MODULAR DESIGN with upgradeable multi board system

• Regulated DC filament supplies with soft start for tubes

• Fully discrete analog stage, not even a single Op-Amp is used

• Proprietary USB Firmware / driver :
Apple MAC OS - Linux OS : USB asynchronous native support, no need to install drivers software

• Fully upgradeable asynchronous USB module with resolution 44.1kHz to 384kHz PCM up to 24 bits, DSD64, DSD128, operates with computers running OSX 10.7 and above, WINDOWS 10 , 8 , 7 and XP ASIO - WASAPI bit perfect high-speed

• Digital phase selector on front panel

• High-quality parts selected for sound quality:
   - 105° long life capacitors
   - low noise Metal Foil ultra-precision resistors
   - double metallized film pulse capacitor
   - ultra-fast diodes
   - halogen free cables

• Aluminium anti-resonant cabinet with Nextel

• Designed and handmade in Italy

• Input:
- RJ45 AQlink (I2S serial bus) - PCM 24 bit / 384kHz – DSD64, DSD128 via DoP
- BNC coax (S/PDIF) 75 ohm  -  PCM 24 bit / 192kHz – DSD64 via DoP
- RCA coax (S/PDIF) 75 ohm  -  PCM 24 bit / 192kHz – DSD64 via DoP
- AES/EBU balanced 110 ohm  -  PCM 24 bit / 192kHz – DSD64 via DoP
- USB port  -  PCM 24 bit / 384kHz – DSD64, DSD128 via DoP

- AT&T (ST Fiber) -  PCM 24 bit / 192kHz – DSD64 via DoP (optional)

• Analog output:
- RCA single-ended
- XLR balanced with transformer
