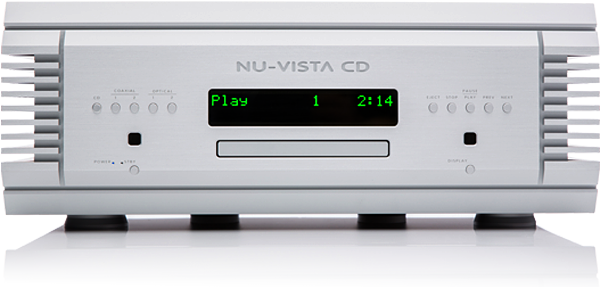

Nu-Vista CD Player - Specifications

Output

• Output impedance 50 ohms balanced or single ended
• Output, digital 0dB level XLR output - 4.4V R.M.S. balanced nominal
• RCA output - 2.2V R.M.S. single ended nominal

DAC - Balanced and single-ended outputs

• DAC circuit 32 bit Delta-Sigma (bit stream) dual differential 8x over-sampling
• Total correlated jitter <135 picoseconds peak to peak
• Linearity <0.1dB down to -96dB

Performance

• Frequency response 10Hz to 20 kHz -0.2dB max.
• Channel separation >105dB 20 Hz to 20 kHz
• Signal-to-noise ratio >117dB “a”- wtd.
• Total harmonic distortion <0.003% 10Hz to 20 kHz

Connections

Line level outputs

• 1 pair line level RCA connectors, left and right outputs
• 1 pair line level XLR connectors, left and right outputs

Digital outputs

• 1 RCA coaxial S/PDIF up to 24 bit 192 kHz
• 1 optical S/PDIF up to 24 bit 96 kHz

Digital inputs

• 2x RCA coaxial S/PDIF up to 24 bit 192 kHz
• 2x optical S/PDIF up to 24 bit 96 kHz

Power requirement

• Mains voltages 90-250VAC 50-60Hz universal
• Power Consumption 20 Watts maximum (blue PWR LED lit)
• Less than 0.5W in standby (orange STBY LED lit)

Weight

• Unit only, unboxed 18.62 kg (41 lbs)
• in shipping carton 26.12 kg (571/2 lbs)

Dimensions

• Wide 483 mm (19”)
• Height on standard flat feet 190 mm (7â…“”)
• Height on pointed feet 212 mm (8â…“”)
• Depth (front to back) including terminals 395 mm (153/4”)

Included accessories

• IEC type mains lead 10-Amp type
• Remote control Nu-Vista Integrated remote
• Batteries LR03 or AAA, manganese alkaline type 2 off
