M2scd - Specifications

Output

• Output impedance: 50 ohms
• Output, digital 0dB level: RCA output - 2.2V r.m.s. nominal

  DAC

  • • DAC circuit: 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling
    • Total correlated jitter: <135 picoseconds peak to peak
    • Linearity: <0.1dB down to -96dB
    • Frequency response: 10Hz to 20 kHz -0.2dB max.
    • Channel separation: >105dB 20 Hz to 20 kHz
    • Signal-to-noise ratio: >117dB “a”- wtd.
    • Total harmonic distortion: <0.003% 10Hz to 20 kHz

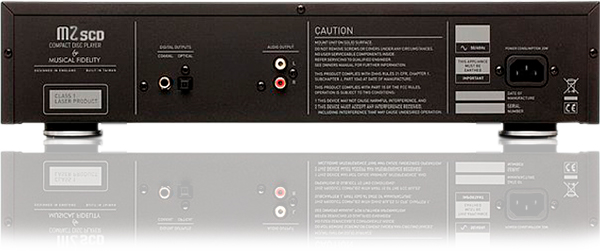

      Connections

      • • Line level outputs: 1 pair line level RCA connectors, left and right outputs
        • Digital outputs: 1 RCA coaxial connector SPDIF, 1 TOSLINK optical connector

          Power requirement

          • • Mains voltages 115/230VAC 50/60Hz (factory pre-set)
            • 100VAC 50/60Hz (alternative)
            • Consumption 20 Watts maximum

              Weight

              • • Unit only, unboxed 6.65 kg (14â…” lbs)
                • In shipping carton 10.5 kg (23 lbs)

                  Dimensions

                  • • Wide 440 mm (17â…“”)
                    • High, including feet 100 mm (4”)
                    • Deep (front to back) including terminals 375 mm (14¾”)
                    •
