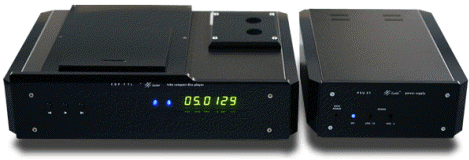

Lector CDP 707 / PSU 3T

 The all new C D P - 7 0 7 is based on new cdm-laser mechanism built with all alluminium body.

Not change the external design but the new electronic core now is update with several new and original solution:

 New laser cd mechanism as great readibility > 3 mm error

 Stable special rubber suspension for reduce internally/external vibration

 New servo circuits based on 32 bit powerfull microprocessor

 New hi perfomances digital filter selectable 4 x or 8 x oversampling / low taps and hi taps           selector filter

 New functions as: numeric pads for direct track calling, display off/on by remote control              handset, variable brightness of display

 The DAC board is always based on two PCM-1704 R2R digital to analog converter

 Pure class A real tubes output without any solid state device on signal path

 Only one capacitor on signal path as custom made film & foil

 Several power supply circuits for all electronic section with great capacitors reserve

 Large display for long distance simple readibility

 Magnetic “puck” with three neodinium magnet

 Two external power supply : PSU-3T basic and super power supply model PSU-7T

 Selected very low noise tubes as 12AT7/ECC-81 ( 2 )

 Chassis made from extruded aereonautic alluminium

Product description: Real tubes output top loading cd player

Active devices: DAC PCM1704 filter DF1706 / 12AT7-ECC81 tubes

Frequency response linearity: 20-20Khz +/- 1 db correct phase + output

Distorsion / residual jitter: < 0.1 % THD / < 20 ps

Power supply: 230 Vac / 120 Vac / 100 vac 50/60 hz 70 V/A

Dimension/weight: 430 mm (L) 300 mm (D) 100 (H) 12 Kg

Certification: CE-EMC / LVD
